ESD/Latch-up

Electrostatic protection is a built-in circuit protection requirement for IC semiconductor products. It must resist the damage of all built-in integrated circuits.

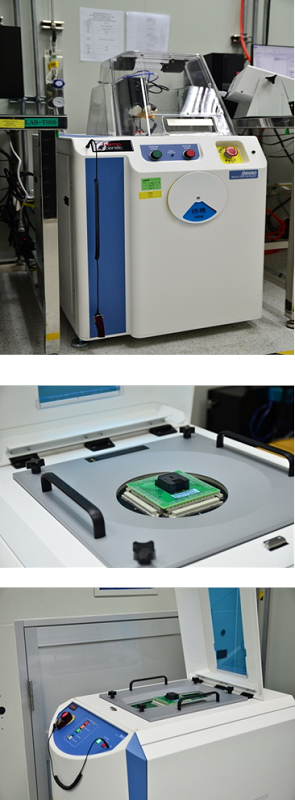

Winstek ESD laboratory provide ED, JDEC, ANSI, IEC, AECQ and other ESD test specifications. At the same time provided static protection test services, and complete verification analysis services such as Final test and failure analysis. We can provide the sockets and load board design and fabrication service.

Test condition

• Human Body Mode Test
• Machine Mode Test
• Charged Device Mode Test
• Latch-up Test
• ESD I-V Curve measurement

Reference Specification

MIL-STD (US military standard)
EIA/JEDEC (Japanese regulations on protection against electrostatic discharge)
AEC (Automotive Electronic Council))
IEC(International Electrotechnical Commission)
JEITA(Japan Electronics and Information Technology Industries Association)
